SNJL5000 Aluminum Melt Purification Treatment Station
Generate QR code
-
Estimated Delivery:Jul 12 - Jul 16
Product description
Aluminum Melt Purification Treatment Station
SNJL5000 Internet Version Aluminum Refining Degassing Machine
SNJL5000 is an integrated aluminum melt refining, degassing and powder injection treatment station. It injects inert gas into molten aluminum through a rotating graphite shaft and graphite wheel, dispersing gas into fine bubbles to remove hydrogen and oxide inclusions while improving aluminum melt cleanliness.
Integrated Refining & Degassing System
✓
Rotary graphite rotor system with silicon carbide composite coating for longer service life.
✓
Automatic powder feeding with pressure-free auger electric powder delivery.
✓
Siemens S7-200 SMART PLC system with 7-inch touch screen.
✓
Internet-enabled control system with 600-furnace process record storage.
3-15min
Typical degassing time depending on melt volume and alloy composition.
0-800rpm
Adjustable rotor speed for different molten aluminum viscosity conditions.
0.5-2.5Nm³/h
Adjustable inert gas flow range for refining and degassing operation.
20kg
Powder tank capacity for electric powder injection system.
Silicon Carbide Composite Coating

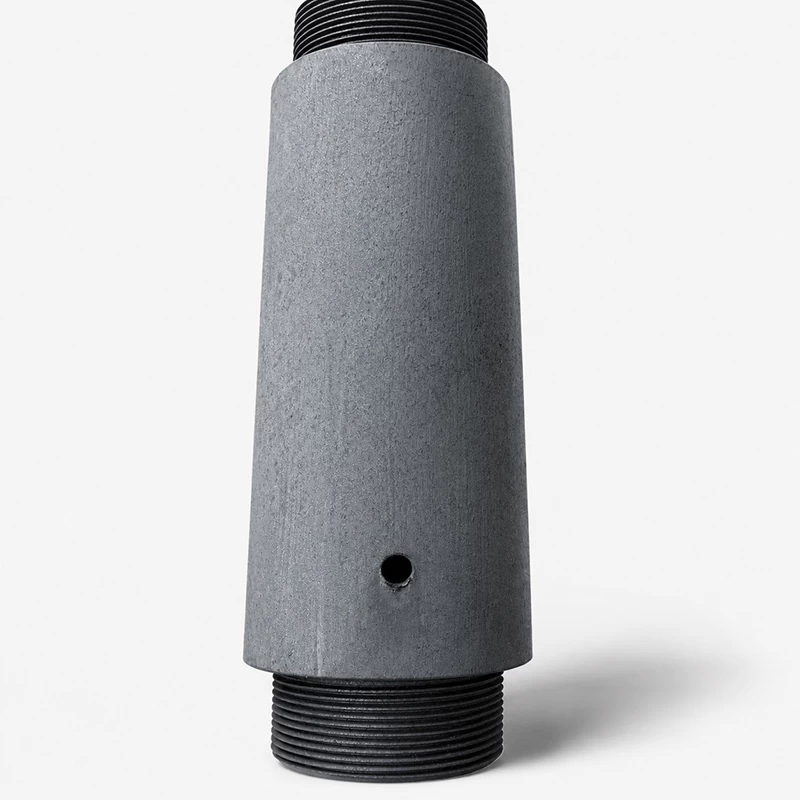

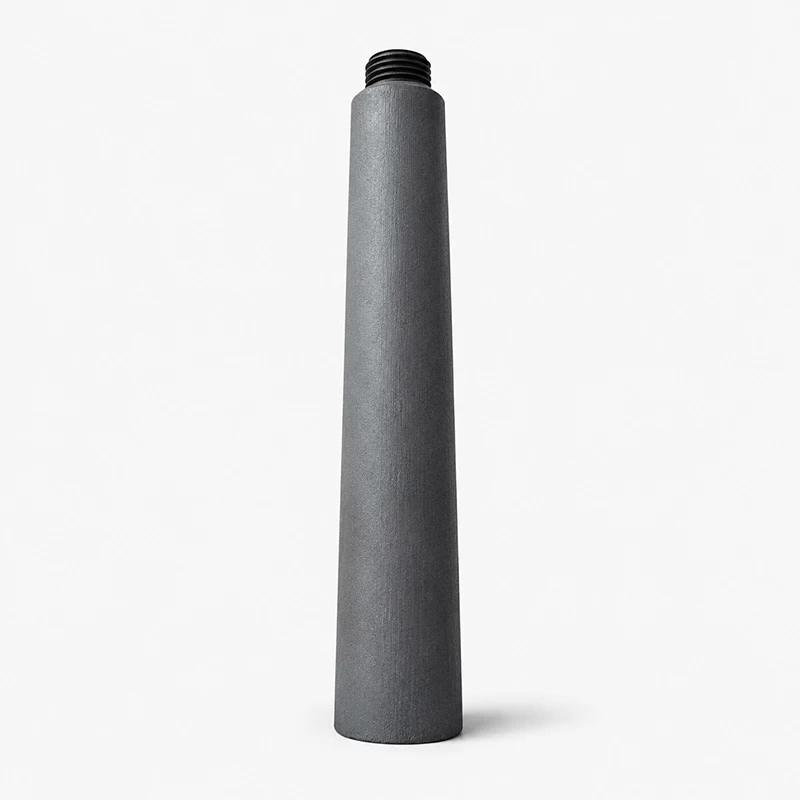

Longer Service Life For Graphite Rotor Shaft

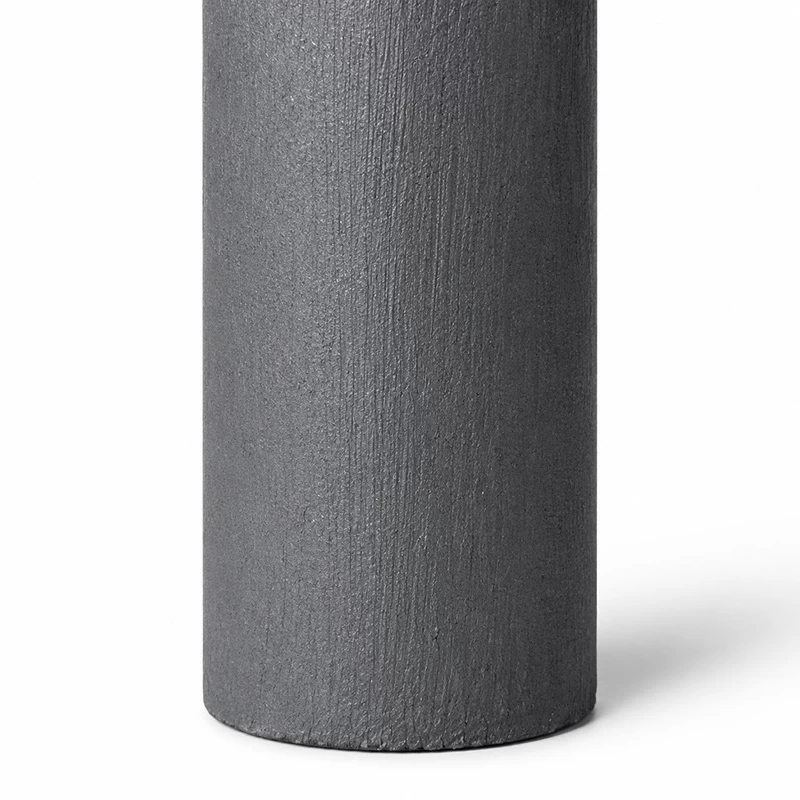

The outer surface of the graphite rotor shaft adopts a silicon carbide composite coating. This protective coating improves surface wear resistance, oxidation resistance and erosion resistance during aluminum melt refining and degassing, helping the rotor shaft work more stably in high-temperature molten aluminum environments.
✓

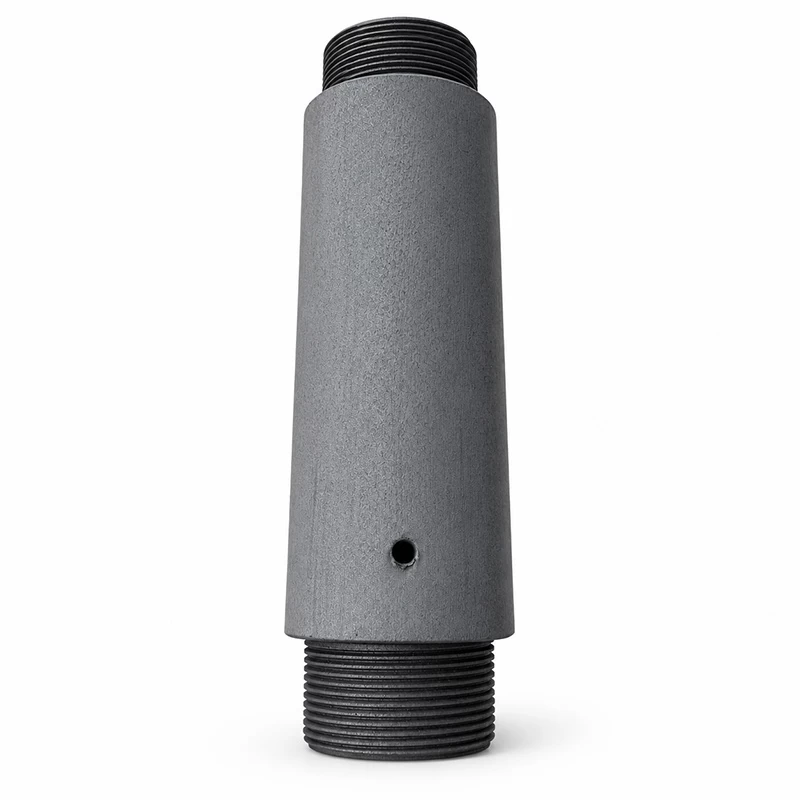

Silicon carbide composite coating helps reduce surface wear and corrosion during continuous operation.
✓
Improved protection greatly extends the service life of the graphite rotor shaft and lowers replacement frequency.
✓
Suitable for demanding aluminum melt purification, refining and rotary degassing processes.
SiC Coating
Composite surface protection for harsh molten aluminum conditions.
Longer Life
Designed to reduce wear and extend consumable usage time.
Stable Use
Supports reliable operation during refining and degassing cycles.
Product Overview
Professional Aluminum Melt Refining, Degassing And Powder Injection Station
The SNJL5000 aluminum melt purification treatment station is designed for aluminum foundry workshops that require efficient hydrogen removal, inclusion separation, powder injection and automated furnace-side refining control.
Efficient Degassing Principle
The machine injects preset inert gas into molten aluminum through the rotating graphite shaft and graphite wheel. The rotor breaks the inert gas into a large number of fine dispersed bubbles, allowing them to mix evenly with molten aluminum. These bubbles absorb hydrogen and oxide inclusions and carry them upward to the melt surface.
Fine bubble dispersion improves contact area with molten aluminum.
Hydrogen and inclusions float to the melt surface with rising bubbles.
Spiral slow-rising bubbles help extend contact time and improve purification effect.
Stable Industrial Design
The machine adopts Siemens PLC S7-200 SMART control system. It is stable, reliable, easy to operate and convenient to maintain. The whole machine has strong rigidity, stable high-speed operation and convenient graphite rotor replacement.
Electric lifting baffle prevents vortex formation during degassing.
Manual and automatic operation modes are available.
Ideal for aluminum casting factories requiring reliable melt purification.
Working Principle
How The Degassing And Purification Process Works
01
Gas Injection
Preset high-purity nitrogen or argon is injected into molten aluminum through the rotating graphite rotor system.
02
Bubble Dispersion
The graphite wheel breaks inert gas into fine bubbles and disperses them evenly into the molten metal.
03
Hydrogen Removal
Fine bubbles absorb hydrogen and oxide inclusions through gas partial pressure difference and surface adsorption.
04
Floating Separation
Bubbles rise slowly in a spiral path and carry impurities to the melt surface, improving refining efficiency.
Machine Advantages
Automatic, Stable And Efficient Aluminum Melt Treatment
Wide Application
Flexible placement for multiple furnace positions and different workshop layouts.
Electric Lifting
Convenient rotor positioning and easy replacement of graphite rod and graphite baffle.
One-key Operation
Manual and automatic modes can be switched, and automatic control is available after stroke setting.
Automatic Alarm
Degassing time can be set; after completion, the indicator flashes, alarms and the unit rises automatically.
Auto Gas Control
Gas valve opens automatically at start and closes automatically after refining is completed.
N₂ / Ar Refining
Efficient use of nitrogen or argon helps shorten degassing time and improve automation.
Data Monitoring
PLC interface includes monitoring, motor control, process parameters, alarm management and system settings.
Improved Casting Quality
Helps improve pouring yield and mechanical properties of aluminum castings.
Technical Parameters
Main Technical Data And System Parameters
Item
Parameter / Description
Unit
Product Model
SNJL5000 Internet Version Aluminum Refining Degassing Machine
-
Main Function
Aluminum melt refining, degassing, slag removal and powder injection
-
Control System
Siemens S7-200 SMART PLC system + button-type electric control box
-
Touch Screen
Siemens SMART LINE 7-inch touch screen
inch
PLC Module
Siemens EM223CN module
-
Power Supply
Three-phase four-wire 2.5 mm² power supply
-
Main Shaft Motor
1.1 kW aluminum shell motor, Shengzhou origin
kW
Reducer Motor
0.75 kW and 0.18 kW RV reducer, Hangzhou origin
kW
Rotor Speed Range
0-800
r/min
Gas Flow Range
0.5-2.5
Nm³/h
Frequency Inverter
WEICHI AC70E-T3-1R5G
-
Inert Gas
High-purity nitrogen or argon, purity above 99.999%
%
Gas Input Pressure
0.3-0.6
MPa
Pressure Sensor
MIK pressure sensor
-
Operation Mode
Automatic / manual switchable modes
-
Graphite Baffle Lifting
Electric lifting, No.20 linear guide positioning
-
Cantilever Lifting
No.25 linear guide, reducer motor chain drive
-
Rotary Joint
SMC rotary joint
-
Powder Feeding Method
Pressure-free auger electric powder feeding
-
Powder Tank Capacity
20
kg
Process Record Storage
Real-time storage for 600 furnace process records
furnaces
Degassing Time
Approx. 3-15 minutes, depending on melt composition and volume
min
Overall Dimension L × W × H
220 × 65 × 310
cm
Lifting Arm Distance
100
cm
Lifting Stroke
160
cm
Internet Function
Control system with internet function
-
Main Configuration
Industrial Components And Automatic Control Configuration
Siemens PLC System
Siemens S7-200 SMART PLC control system with Siemens EM223CN module for stable automatic operation.
7-inch Touch Screen
Siemens SMART LINE 7-inch HMI supports monitoring, motor control, process parameters and system settings.
WEICHI Inverter
WEICHI AC70E-T3-1R5G inverter allows rotor speed adjustment from 0 to 800 r/min.
Electric Lifting System
Graphite baffle uses electric lifting with No.20 linear guide; cantilever lifting uses No.25 linear guide.
SMC Rotary Joint
SMC rotary joint supports gas transmission during rotating graphite rotor operation.
Powder Injection System
Pressure-free auger electric powder feeding with 20 kg storage tank capacity.
Control Functions
Automatic Operation With Process Monitoring
The SNJL5000 system supports automatic and manual operation. After parameters are set, operators can complete the refining and degassing process through one-key operation.
Automatic Lowering
In automatic mode, the rotor automatically lowers into the molten aluminum for degassing operation.
Timed Degassing
Degassing time can be set according to molten aluminum quantity and alloy composition.
Auto Stop And Lift
When time ends, the system stops rotation, lifts automatically and reminds operators with sound-light alarm.
Automatic Gas Valve
Gas source opens automatically during work and closes automatically after refining is completed.
Process Records
The PLC interface can save 600 furnace process records in real time for production tracking.
Internet Function
Internet-enabled control system supports modern production monitoring and process management needs.
Applications
Suitable For Aluminum Casting And Melt Purification Lines
Aluminum Alloy Foundry
Suitable for aluminum casting factories that require stable melt refining and degassing.
Rotary Degassing Process
Used for inert gas rotary degassing and hydrogen removal before casting.
Powder Injection Treatment
Supports electric auger powder feeding for integrated refining treatment.
Gravity Casting
Helps improve molten aluminum cleanliness before gravity casting production.
Low Pressure Casting
Suitable for aluminum melt purification before low pressure casting applications.
Die Casting Preparation
Supports cleaner molten aluminum preparation before die casting production.
Operation Flow
Simple Automatic Refining And Degassing Process
01
Position Equipment
Place and lock the equipment near the required furnace position according to production layout.
02
Set Parameters
Set rotor speed, gas flow, degassing time, travel stroke and powder feeding parameters.
03
Start Automatic Mode
The rotor lowers automatically, gas valve opens and refining degassing begins.
04
Finish And Lift
After treatment, the system stops rotation, lifts automatically, closes gas supply and gives alarm reminder.
Custom Design Available For Different Site Conditions
The equipment layout, lifting stroke, furnace position and operating process may vary according to customer workshops. Customized design solutions can be provided according to actual site conditions.
Site Layout Matching
Design can be adjusted according to furnace location and operating space.
Process Adjustment
Rotor speed and gas flow can be set according to molten aluminum viscosity.
Automation Settings
Degassing time, travel stroke and alarm functions can be configured for workflow needs.
Consumable Matching
Graphite rotor, graphite rod and graphite baffle can be matched for production requirements.
SNJL5000 Aluminum Melt Purification Treatment Station
An integrated aluminum melt refining, degassing and powder injection system with Siemens PLC control, automatic gas management, electric lifting, process record storage and internet-enabled control functions.
