Hanging refining degassing unit SNJL1000
Generate QR code
-
Estimated Delivery:Jul 12 - Jul 16
Product description
Aluminum Melt Refining Equipment
Hanging Refining Degassing Unit SNJL1000
SNJL1000 is a hanging refining degassing unit designed for molten aluminum treatment. It combines rotary degassing, controlled gas flow, electric lifting and stable graphite consumables to help reduce hydrogen content, improve melt cleanliness and support consistent casting quality.
850kg
Maximum processing capacity
0-750
Adjustable speed range / r/min
5-50
Gas flow range / L/min
1400mm
Electric lifting stroke

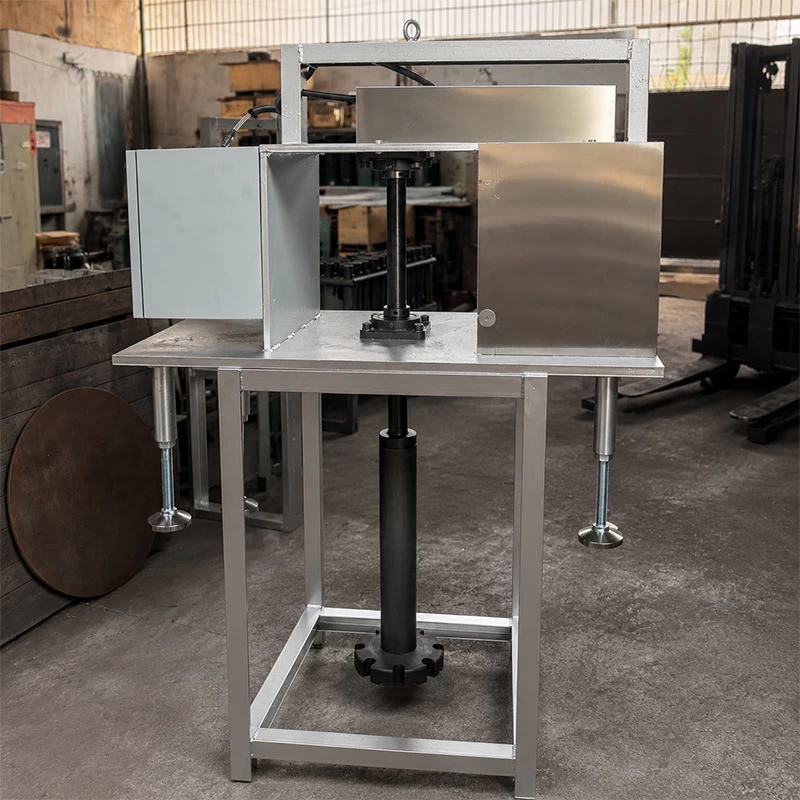

Mobile frame structure with stable support and integrated control system.

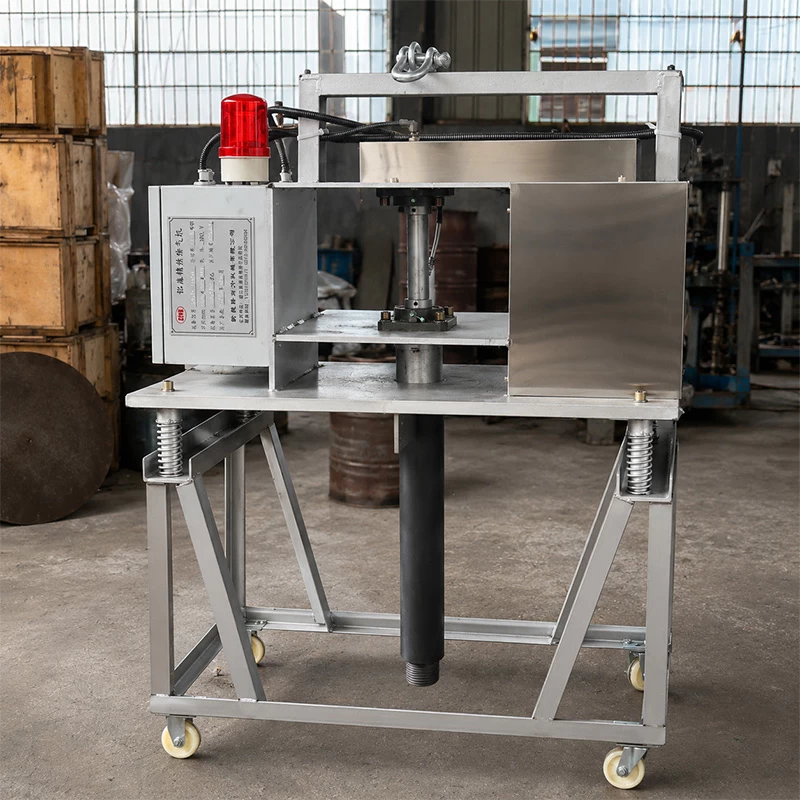

Hanging rotary shaft design for aluminum melt refining and degassing operation.

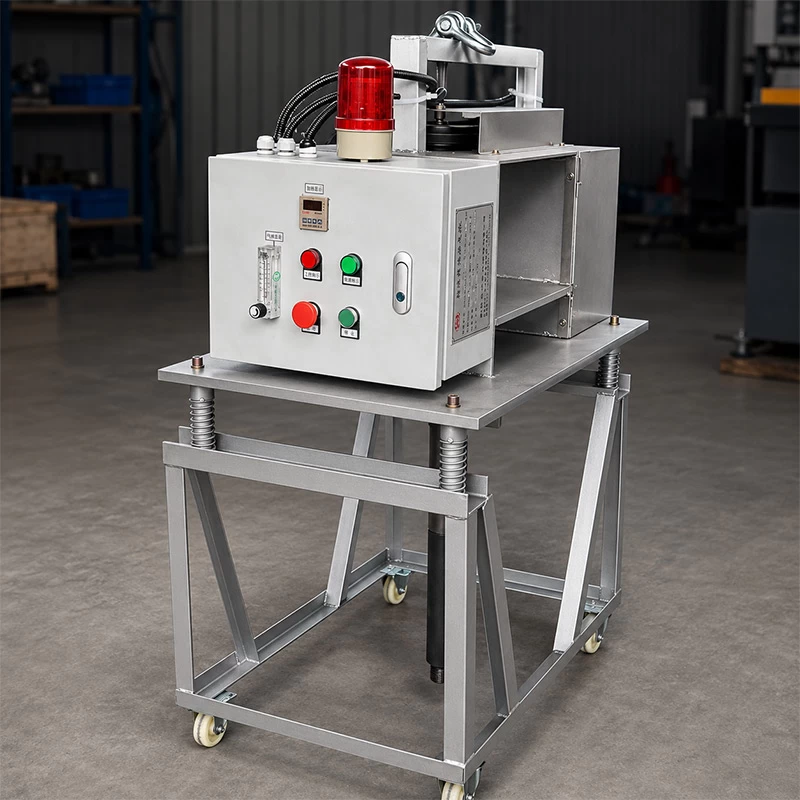

Control cabinet with indicator light, flow meter and operation buttons.
Product Overview
Reliable Degassing Solution For Aluminum Melt Treatment
The unit is suitable for aluminum alloy melting, refining and casting preparation. Through high-speed rotor stirring and controlled gas injection, bubbles are evenly dispersed in molten aluminum, helping remove hydrogen and non-metallic inclusions before casting.
Stable Refining Performance
The SNJL1000 uses a graphite rotor and graphite baffle to improve gas dispersion efficiency. The variable-speed motor allows operators to adjust rotary speed according to melt volume, furnace condition and process requirements.
Adjustable rotor speed from 0 to 750 r/min.
Gas flow range from 5 to 50 L/min for flexible operation.
Sound and light alarm design for safer operation feedback.
Easy Operation & Flexible Installation
The equipment supports mobile or fixed installation. Electric chain lifting enables convenient height adjustment, while the hanging arm structure provides effective working reach for aluminum melt treatment.
Electric chain lifting system with 1400 mm stroke.
1100 mm effective cantilever length for practical furnace operation.
Mobile or fixed support options for different workshop layouts.
Core Advantages
Designed For Efficient Aluminum Refining
Rotary Degassing
Graphite rotor disperses gas into fine bubbles to improve hydrogen removal and melt purification.
Electric Lifting
Electric chain lifting provides stable vertical movement and easier adjustment during operation.
Precise Flow Control
Equipped with 5-50 L/min flow meter for convenient monitoring of refining gas supply.
Industrial Components
Uses SIEMENS, WEICHI, CHINT, SMC and other selected components for stable industrial operation.
Technical Parameters
Main Specifications Of SNJL1000
Item
Parameter
Unit
Maximum Processing Capacity
850
kg
Speed Adjustment Range
0-750
r/min
Motor Power
1.1 + 0.75 + 0.75 + 0.18
kW
Pipeline Gas Pressure
0.3-0.8
MPa
Gas Flow Range
5-50
L/min
Rotor Size
80 × 800
mm
Rotary Disc Size
200 × 85
mm
Effective Cantilever Length
1100
mm
Lifting Method
Electric chain lifting
-
Lifting Stroke
1400
mm
Support Type
Mobile / Fixed
-
Rotor Rotation Error
5
mm
Machine Weight
980
kg
Powder Tank Capacity
20
L
Alarm System
Sound and light alarm
-
Delivery Period
7
days
Configuration
Main Components And Brands
The machine is configured with practical industrial components to support stable operation, convenient control and long-term service in aluminum foundry workshops.
Rotary Motor
1 Set
Aluminum shell motor, brand: Chaowei.
Lifting Motor
1 Set
Aluminum shell motor, brand: Chaowei.
Graphite Rotor
1 Set
Graphite material, brand: SNE.
Graphite Baffle
1 Pc
Graphite material, brand: SNE.
Main Shaft
1 Pc
45# quenched and tempered steel, brand: SNE.
Heat Insulation Cover
1 Set
Brand: SNE, designed for aluminum melt working conditions.
Inverter
1 Set
Brand: WEICHI, used for speed adjustment.
PLC & Touch Screen
1 Set
Brand: SIEMENS, suitable for convenient operation control.
Electrical Components
52 Pcs
Brand: CHINT, including relays, contactors and related components.
Flow Meter
1 Pc
5-50 L/min, brand: NBDC.
Solenoid Valve
1 Pc
Brand: SN, used for gas control system.
Pneumatic Components
8 Pcs
Brand: SMC, supporting stable pneumatic operation.
Working Process
Simple Operation Flow
01
Position The Unit
Move or install the equipment near the furnace according to the production layout.
02
Lower The Rotor
Use electric lifting to place the graphite rotor into molten aluminum at the required depth.
03
Set Speed & Flow
Adjust rotation speed and gas flow according to melt volume and refining requirements.
04
Complete Degassing
After treatment, lift the rotor and prepare the molten aluminum for casting or transfer.
Applications
Suitable For Aluminum Alloy Production Lines
Aluminum Alloy Melting
Used for hydrogen removal and melt purification before casting.Low Pressure Casting
Helps improve melt quality and reduce casting defects caused by gas content.Gravity Casting
Suitable for aluminum casting workshops requiring stable degassing performance.Die Casting Preparation
Supports cleaner aluminum melt before feeding into die casting production.Aluminum Profile Processing
Helps improve melt cleanliness for extrusion and profile manufacturing.Recycled Aluminum Industry
Applicable for refining treatment of recycled aluminum melt.Need A Customized Degassing Solution?
The SNJL1000 hanging refining degassing unit can be configured according to furnace size, working height, production capacity and plant layout. Contact us for technical selection and quotation support.
Discover more in our FAQ
Q1: What are your main products?
A: Our core products include two main equipment categories and related high-temperature consumables:
Aluminum Melt Refining Degassing Machine Rotary degassing equipment, available in fixed and mobile models.
Aluminum Melt Hydrogen Analyzer Used for real-time detection of hydrogen content in molten aluminum.
Supporting Consumables Silicon nitride components, graphite rotors, graphite discs, graphite baffles, and other high-temperature resistant parts.
Our complete product system features high efficiency, excellent wear resistance, and long service life, suitable for the full aluminum alloy melting and casting process.
Aluminum Melt Refining Degassing Machine Rotary degassing equipment, available in fixed and mobile models.
Aluminum Melt Hydrogen Analyzer Used for real-time detection of hydrogen content in molten aluminum.
Supporting Consumables Silicon nitride components, graphite rotors, graphite discs, graphite baffles, and other high-temperature resistant parts.
Our complete product system features high efficiency, excellent wear resistance, and long service life, suitable for the full aluminum alloy melting and casting process.
Q2: Which industries are your products suitable for?
A: Our products are widely used in aluminum alloy melting, low-pressure casting, gravity casting, die casting, aluminum profile processing, and the recycled aluminum industry.
Q3: Do you support customization? Can you provide OEM/ODM services?
A: Yes. We support customization for all product categories and accept OEM and ODM cooperation. We can customize degassing machines and hydrogen analyzers according to customers’ furnace size, production capacity, and workshop conditions. We can also process consumable parts based on drawings or samples.
Q4: Can the packaging be customized?
A: Yes. We provide standard neutral export packaging and can also customize packaging with customers’ logos, brand labels, or other required designs.
